Lamella Clarifier
Mit Water manufactures lamella clarifiers (inclined plate settlers) for efficient solid-liquid separation in water and wastewater treatment. Compared to conventional sedimentation tanks, lamella clarifiers achieve a significantly smaller footprint by using inclined parallel plates that increase the effective settling area by a factor of 6 to 15.
Working Principle
Feed water enters the clarifier and flows upward through a pack of inclined parallel plates spaced at 50 to 80 mm intervals. Suspended solids settle onto the plate surfaces and slide down by gravity into a sludge collection hopper at the bottom, while clarified water overflows through weirs at the top. The inclined plate design provides a large settling surface within a compact volume.
System Features

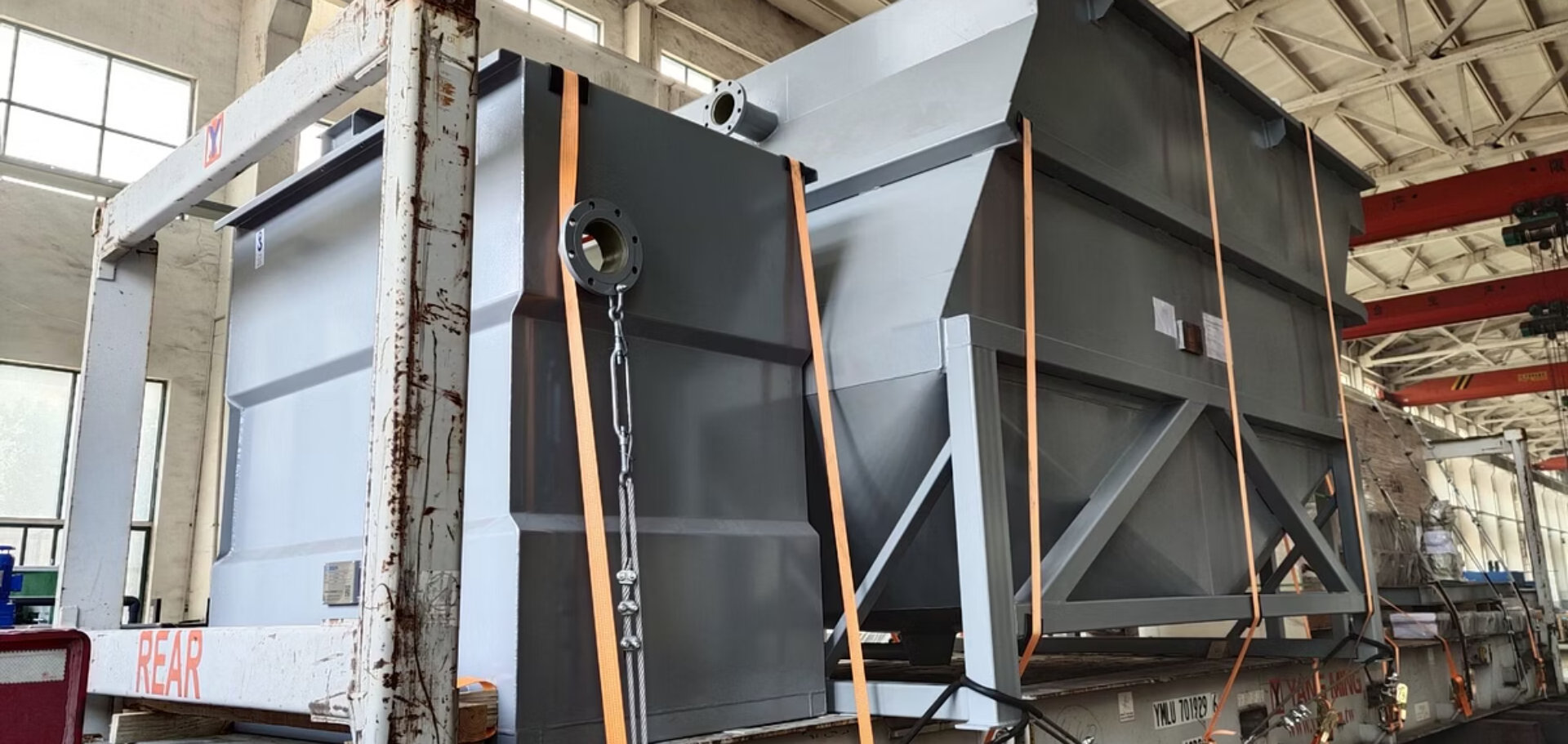

Our lamella clarifiers include an inlet distribution zone, inclined plate pack (PP, PVC or SS304), sludge hopper with scraper mechanism, clarified water collection trough, and a support structure. The system is usually preceded by coagulation and flocculation tanks for optimal performance.
Lamella clarifiers are widely used for efficient solid-liquid separation:
- Industrial wastewater pre-treatment and primary clarification
- Surface water treatment for drinking water production
- Post-precipitation clarification for heavy metal removal
- Chemical softening sludge separation (lime softening)
- Mining and mineral processing water clarification
- FGD wastewater treatment in power plants
- Backwash water recovery from filtration processes
Technical Parameters
| Flow Rate | 5 to 500 m3/h per unit |
| Surface Loading Rate | 0.5 to 2.0 m3/m2/h (projected area) |
| Plate Spacing | 50 to 80 mm |
| Plate Material | PP, PVC, or SS304 |
| Inclination Angle | 55 to 60 degrees from horizontal |
| Tank Material | SS304, SS316L, or epoxy-coated carbon steel |
| Sludge Solids Content | 2% to 5% DS |
| Control System | PLC with sludge blanket level and desludging control |
